Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Chengdu Xingweihan Welding Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

  • 1
  • 2

Brand Name : XWH

Model Number : DN

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $500.00 - $700.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets/month

Delivery Time : 15 Working days

Packaging Details : Wooden Case

Product name : Pedal Type Spot Welder

Machine type : Resistance AC Welding Machine

Application : Metal Spot Welding

Welding material : Alloy Metal Aluminum Stainless Steel

Keyword : Foot Switch Spot Welding

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Contact Now

Factory DN-35 DN-25 DN-16 DN-10 Construction Steel Foot Operated Spot Welder
Product Description

Principle of spot welding machine: A welding method in which the workpiece being welded is pressed between two electrodes and heated to a molten or plastic state using the resistance heat generated by flowing through the contact surface and adjacent areas of the workpiece, forming a joint.

The DN series foot operated spot welding machine uses electrodes to pressurize the welded part while being energized, and uses the Joule heat (instantaneous) generated by the contact resistance between electrodes to melt the metal to achieve the purpose of welding. No need to add any solder, high efficiency, low cost, and other characteristics.

Technical Parameters
Models/Item
DN-35 DN-25 DN-16 DN-10
Rated Power at 50% 35KVA 25KVA 16KVA 10KVA
Rated Primary Power 380V 380V 380V 380V
Rated Primary Current 92A 66A 42.1A 26.3A
Rated Duty Cycle 10% 10% 10% 10%
Secondary Unload Voltage 2.6~4.2V 2.3~3.55V 1.98~3.01V 1.65~2.4V
Adjustment Rated 4 4 4 4
Welding Time Adjustment 0~9.99s
0~9.99s
0~9.99s 0~9.99s
Arms Length 280mm 280mm 280mm 260mm
Max. Welding Capacity 3+3mm 2.5+2.5mm 2+2mm 1.5+1.5mm
Cooling Ways
Main Transformer: Air air cooling Electrode: Water cooling

Advantages

1. It's easy to operate and maintain for the pedal-level type spring-pressing structure.
2. The welding time can be adjusted and the welding repeatability is excellent.
3. Quality Material Selection: The casing is made of high-quality metal material, with a surface treated with spray molding, high hardness, durability.
4. Application: household appliances, kitchen utensils, automobile manufacturing, sheet metal processing, construction steel and other industries.

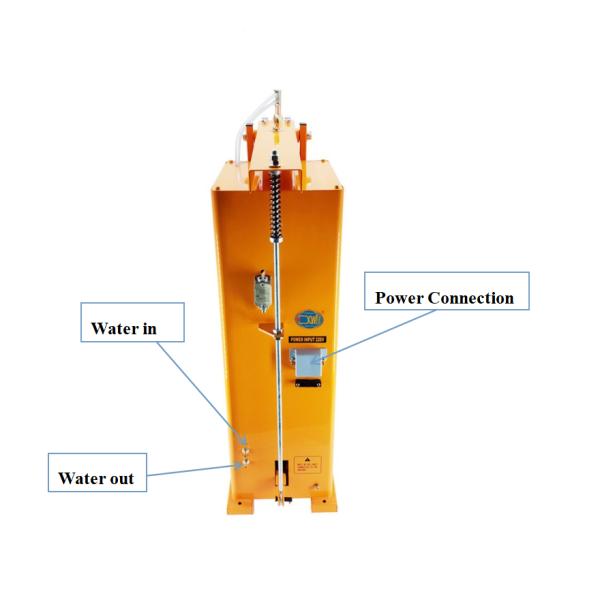

Detail Images

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10
Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Images

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Please note: the pedal spot welding machine can be custom-made according to your requirements.

Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10
Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Construction Steel Foot Operated Spot Welder DN-35 DN-25 DN-16 DN-10

Models
Item
DN-35 DN-25 DN-16 DN-10
Rated Power at 50% 35KVA 25KVA 16KVA 10KVA
Rated Primary Power 380V 380V 380V 380V
Rated Primary Current 92A 66A 42.1A 26.3A
Rated Duty Cycle 10% 10% 10% 10%
Secondary Unload Voltage 2.6~4.2V 2.3~3.55V 1.98~3.01V 1.65~2.4V
Adjustment Rated 4 4 4 4
Welding Time Adjustment 0~9.99s
0~9.99s
0~9.99s 0~9.99s
Arms Length 280mm 280mm 280mm 260mm
Max. Welding Capacity 3+3mm 2.5+2.5mm 2+2mm 1.5+1.5mm
Cooling Ways
Main Transformer: Air air cooling Electrode: Water cooling
